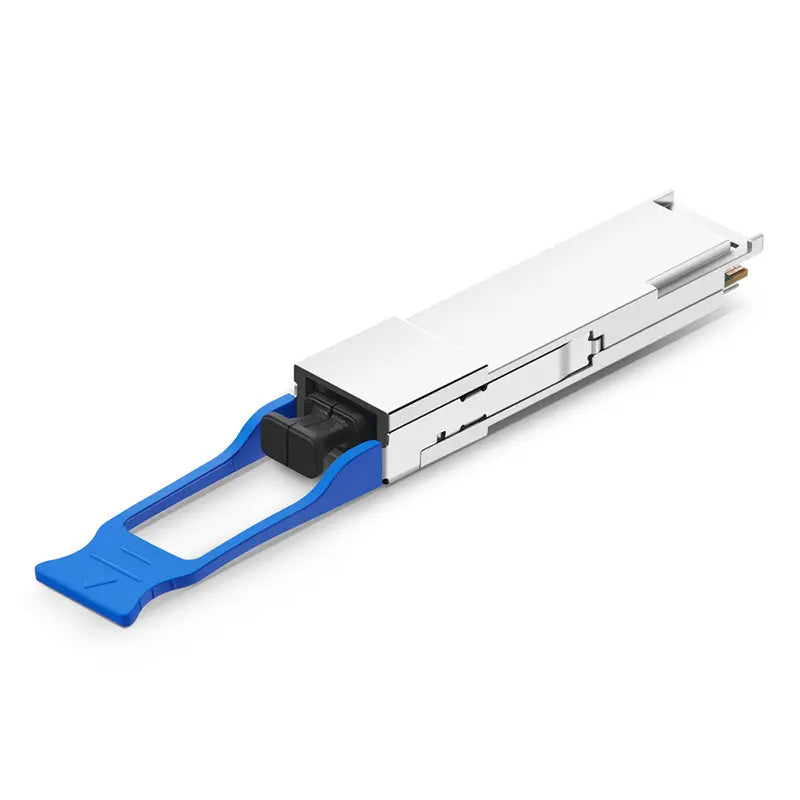

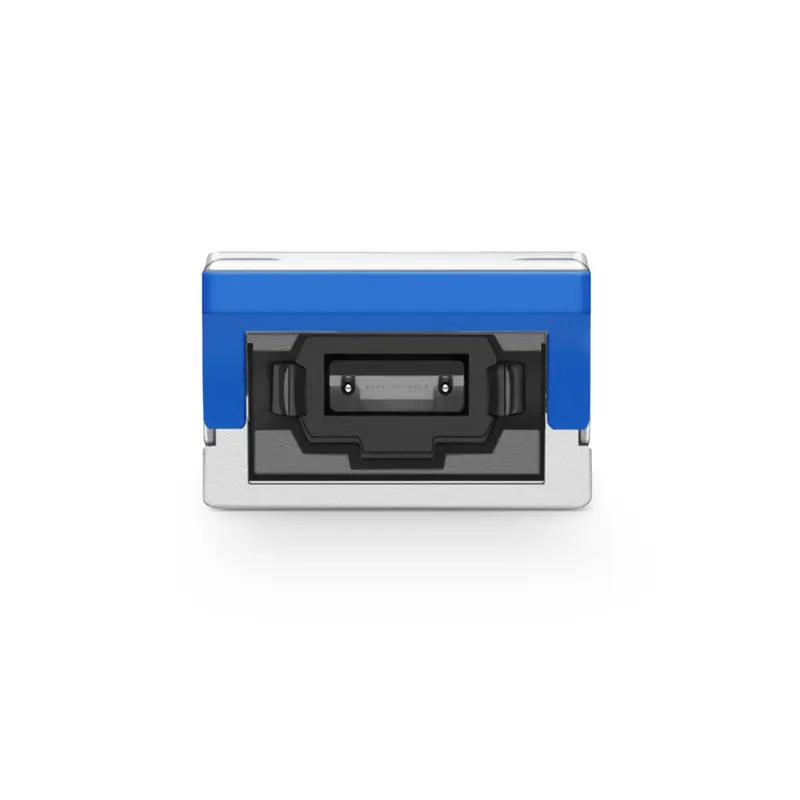

The QSFP-100G-PSM4-T2-THI is compatible with Juniper QSFP-100G-PSM4-T2. This 100GBASE-PSM4 QSFP28 product supports 100G links up to 500M over single-mode fiber. It uses 1310nm and a MPO-12 interface and supports digital optical monitoring.
✓ Coded In-House - programmed for the specified compatibility
✓ Tested In-House - tested for the specified compatibility
| Technical Specification | |
|---|---|
| Compatibility | Compatible with Juniper |
| OEM Part Number | QSFP-100G-PSM4-T2 |
| OEM Orderable Number | N/A |
| Connector Type | MPO-12 |
| DOM | Yes |
| Form Factor | QSFP28 |
| Media Type | SMF |
| Maximum Link Length | 500M |
| Speed | 100G |
| Interface Standard | 100GBASE-PSM4 |
| Wavelength | 1310nm |
| Optical Specification | |
| Optical Standard | 100GBASE-PSM4 |
| Fiber Type | SMF |
| Nominal Wavelength | 1310nm |
| Maximum Reach | 500M |
| Physical Specification | |
| Product Shipping Dimensions (HxWxD) | 1.2 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight (lb) | 0.4 |
| Operating Temperature | 0 to 70°C (commercial) |
| Laser Class | Class 1 |
| Miscellaneous | |
| ECCN | 5A991 |
| HTS Code (US) | 8517.62.0090 |
| What's Included | 1x transceiver |
Juniper® is a registered trademark of its respective owner. THI is not affiliated with, endorsed by, or sponsored by Juniper. This is a third-party compatible product.
