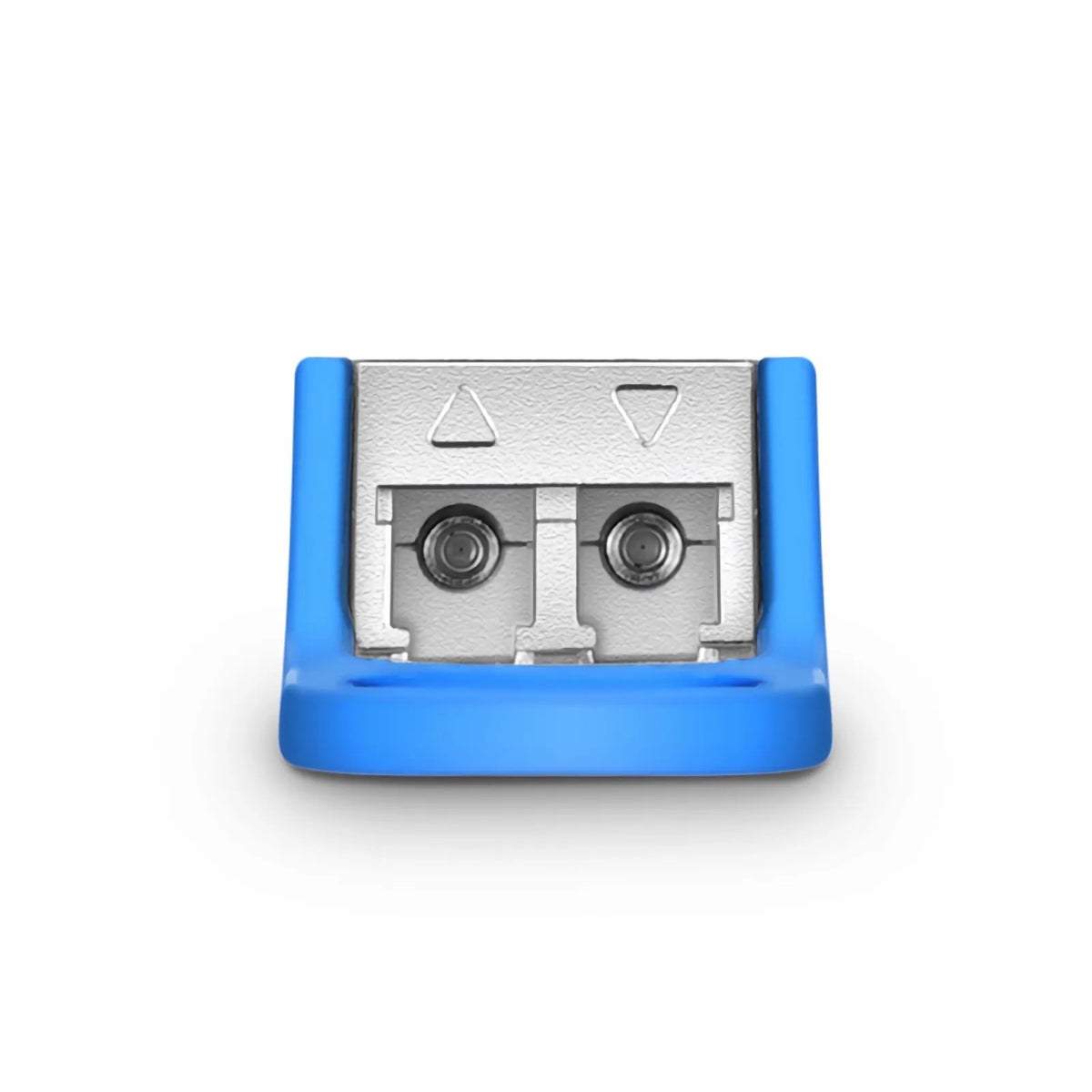

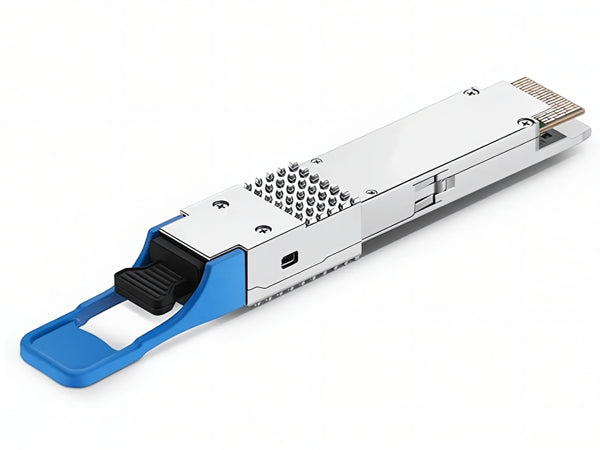

The QDD-400G-LR8-THI is compatible with Juniper QDD-400G-LR8. This 400GBASE-LR8 QSFP-DD product supports 400G links up to 10KM over single-mode fiber. It uses 1295nm-1310nm and a Duplex LC interface and supports digital optical monitoring.
✓ Coded In-House - programmed for the specified compatibility
✓ Tested In-House - tested for the specified compatibility
| Technical Specification | |
|---|---|
| Compatibility | Compatible with Juniper |
| OEM Part Number | QDD-400G-LR8 |
| OEM Orderable Number | N/A |
| Connector Type | Duplex LC |
| DOM | Yes |
| Form Factor | QSFP-DD |
| Media Type | SMF |
| Maximum Link Length | 10KM |
| Speed | 400G |
| Interface Standard | 400GBASE-LR8 |
| Wavelength | 1295nm-1310nm |
| Optical Specification | |
| Optical Standard | 400GBASE-LR8 |
| Fiber Type | SMF |
| Nominal Wavelength | 1295nm-1310nm |
| Maximum Reach | 10KM |
| Transmit Power Minimum (dBm) | -2.8 |
| Transmit Power Maximum (dBm) | 5.3 |
| Receive Power Minimum (dBm) | -9.1 |
| Receive Power Maximum (dBm) | 5.3 |
| Maximum Channel Insertion Loss (dB) | 6.3 |
| Transmit / Receive Wavelength Range (nm) | 1273, 1277, 1282, 1286, 1295, 1300, 1304, 1309 |
| Measurement Basis | Average power; per lane; pre-FEC 2.4x10^-4 |
| Physical Specification | |
| Product Shipping Dimensions (HxWxD) | 1.2 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight (lb) | 0.4 |
| Operating Temperature | 0 to 70°C (commercial) |
| Laser Class | Class 1 |
| Miscellaneous | |
| ECCN | 5A991 |
| HTS Code (US) | 8517.62.0090 |
| What's Included | 1x transceiver |
Juniper® is a registered trademark of its respective owner. THI is not affiliated with, endorsed by, or sponsored by Juniper. This is a third-party compatible product.
