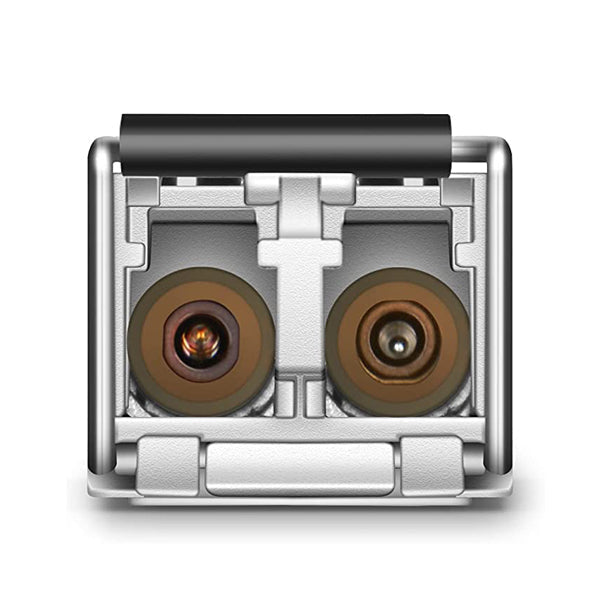

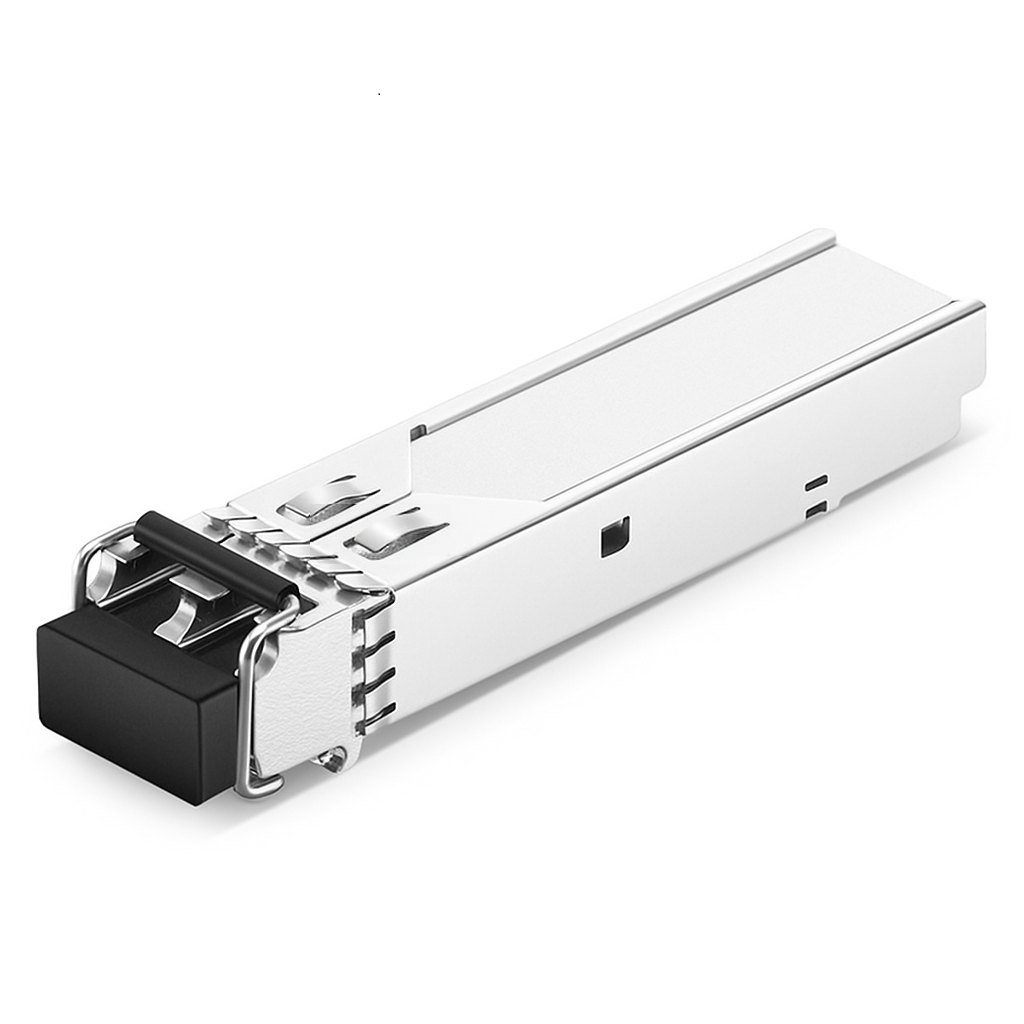

The MGBIC-01-THI is compatible with Enterasys MGBIC-01. This 1000BASE-SX SFP product supports 1G links up to 550M over multimode fiber. It uses 850nm and a Duplex LC interface and supports digital optical monitoring.
✓ Coded In-House - programmed for the specified compatibility
✓ Tested In-House - tested for the specified compatibility
| Technical Specification | |
|---|---|
| Compatibility | Compatible with Enterasys |
| OEM Part Number | MGBIC-01 |
| OEM Orderable Number | N/A |
| Connector Type | Duplex LC |
| DOM | Yes |
| Form Factor | SFP |
| Media Type | MMF |
| Maximum Link Length | 550M |
| Speed | 1G |
| Interface Standard | MGBIC-01-THI |
| Wavelength | 850nm |
| Optical Specification | |
| Optical Standard | MGBIC-01-THI |
| Fiber Type | MMF |
| Nominal Wavelength | 850nm |
| Maximum Reach | 550M |
| Physical Specification | |
| Product Shipping Dimensions (HxWxD) | 1.2 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight (lb) | 0.4 |
| Operating Temperature | 0 to 70°C (commercial) |
| Laser Class | Class 1 |
| Miscellaneous | |
| ECCN | 5A991 |
| HTS Code (US) | 8517.62.0090 |
| What's Included | 1x transceiver |
Enterasys® is a registered trademark of its respective owner. THI is not affiliated with, endorsed by, or sponsored by Enterasys. This is a third-party compatible product.
