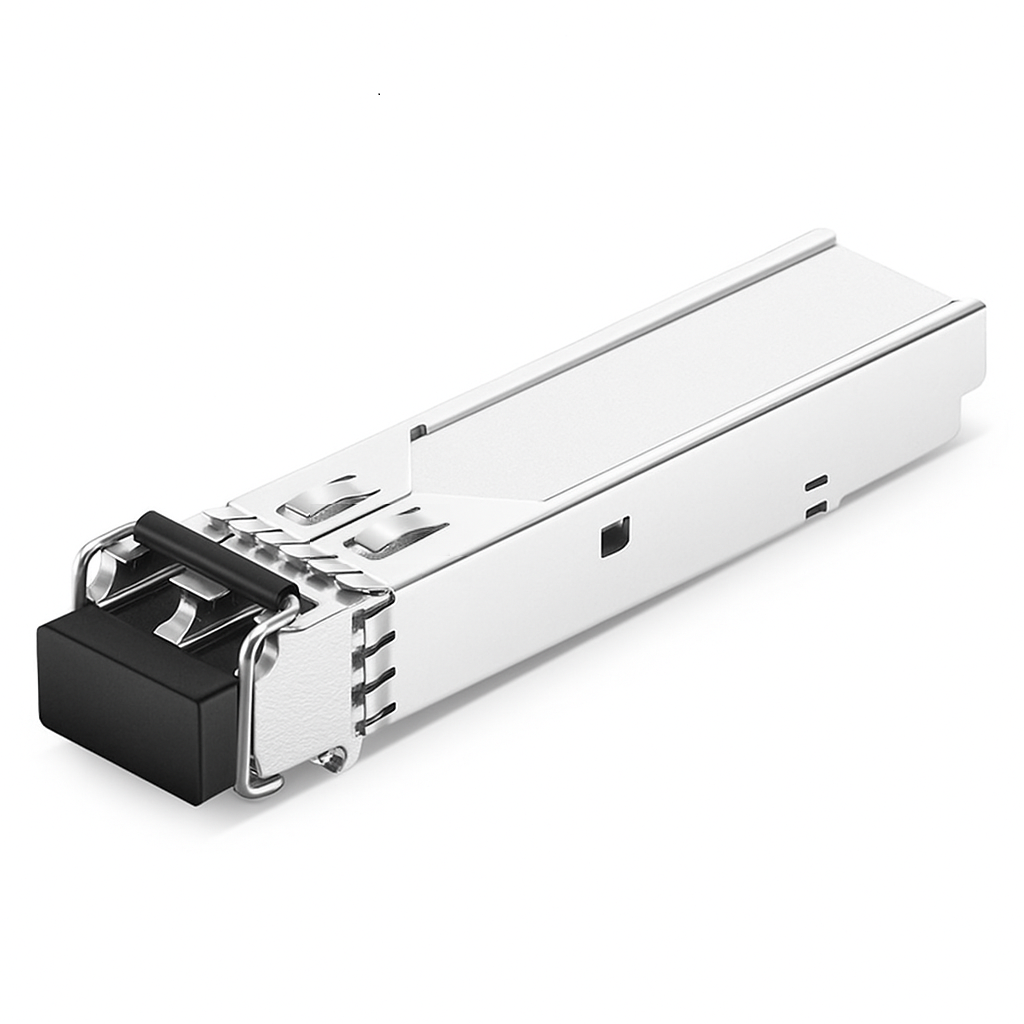

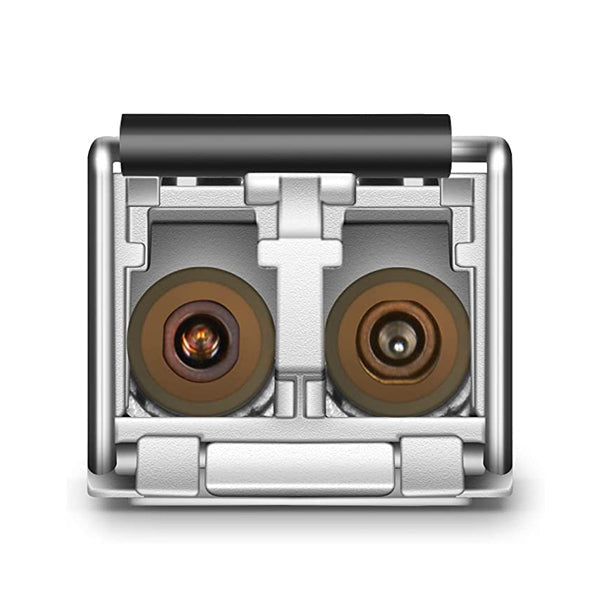

The GLC-SX-MM-RGD-THI is compatible with Cisco GLC-SX-MM-RGD and GLC-SX-MM-RGD=. This 1000BASE-SX SFP product supports 1G links up to 550M over multimode fiber. It uses 850nm and a Duplex LC interface and supports digital optical monitoring.
✓ Coded In-House - programmed for the specified compatibility
✓ Tested In-House - tested for the specified compatibility
| Technical Specification | |
|---|---|
| Compatibility | Compatible with Cisco |
| OEM Part Number | GLC-SX-MM-RGD |
| OEM Orderable Number | GLC-SX-MM-RGD= |
| Connector Type | Duplex LC |
| DOM | Yes |
| Form Factor | SFP |
| Media Type | MMF |
| Maximum Link Length | 550M |
| Speed | 1G |
| Interface Standard | 1000BASE-SX |
| Wavelength | 850nm |
| Optical Specification | |
| Optical Standard | 1000BASE-SX |
| Fiber Type | MMF |
| Nominal Wavelength | 850nm |
| Maximum Reach | 550M |
| Transmit Power Minimum (dBm) | -9.5 |
| Transmit Power Maximum (dBm) | -3 |
| Receive Power Minimum (dBm) | -17 |
| Receive Power Maximum (dBm) | 0 |
| Transmit / Receive Wavelength Range (nm) | 770 to 860 |
| Measurement Basis | Average power |
| Physical Specification | |
| Product Shipping Dimensions (HxWxD) | 1.2 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight (lb) | 0.4 |
| Operating Temperature | -40 to 85°C (industrial) |
| Laser Class | Class 1 |
| Miscellaneous | |
| ECCN | 5A991 |
| HTS Code (US) | 8517.62.0090 |
| What's Included | 1x transceiver |
Cisco® is a registered trademark of its respective owner. THI is not affiliated with, endorsed by, or sponsored by Cisco. This is a third-party compatible product.
