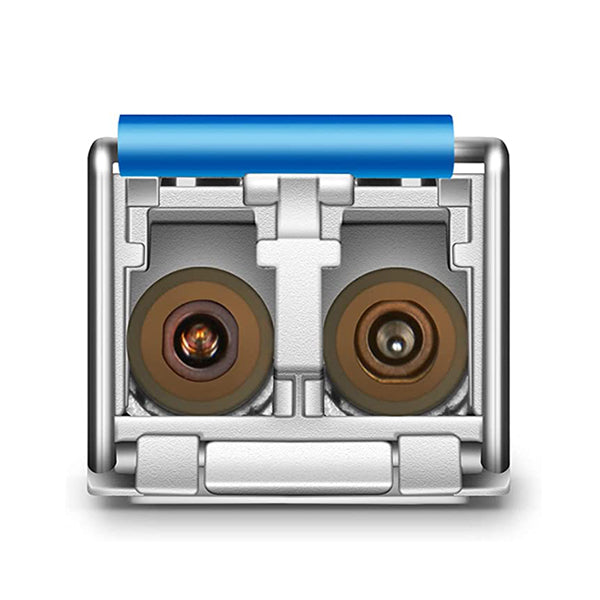

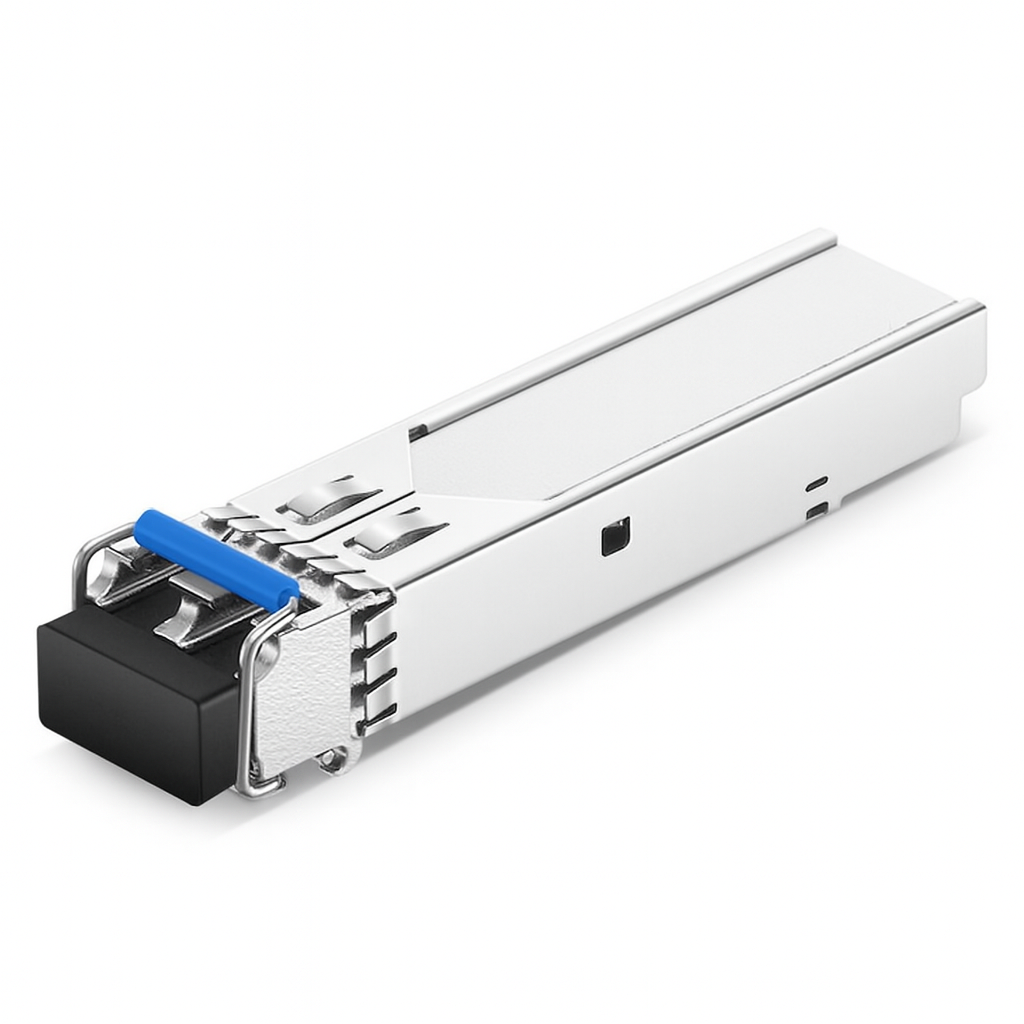

The 7SX-001-THI is compatible with Accedian 7SX-001. This 1000BASE-CWDM SFP product supports 1G links up to 80KM over single-mode fiber. It uses 1510nm and a Duplex LC interface and supports digital optical monitoring.
✓ Coded In-House - programmed for the specified compatibility
✓ Tested In-House - tested for the specified compatibility
| Technical Specification | |
|---|---|
| Compatibility | Compatible with Accedian |
| OEM Part Number | 7SX-001 |
| OEM Orderable Number | N/A |
| Connector Type | Duplex LC |
| DOM | Yes |
| Form Factor | SFP |
| Media Type | SMF |
| Maximum Link Length | 80KM |
| Speed | 1G |
| Interface Standard | 1000BASE-CWDM |
| Wavelength | 1510nm |
| Optical Specification | |
| Optical Standard | 1000BASE-CWDM |
| Fiber Type | SMF |
| Nominal Wavelength | 1510nm |
| Maximum Reach | 80KM |
| Physical Specification | |
| Product Shipping Dimensions (HxWxD) | 1.2 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight (lb) | 0.4 |
| Operating Temperature | 0 to 70°C (commercial) |
| Laser Class | Class 1 |
| Miscellaneous | |
| ECCN | 5A991 |
| HTS Code (US) | 8517.62.0090 |
| What's Included | 1x transceiver |
Accedian® is a registered trademark of its respective owner. THI is not affiliated with, endorsed by, or sponsored by Accedian. This is a third-party compatible product.
